Air Conditioner, Daikin, Non Inverter

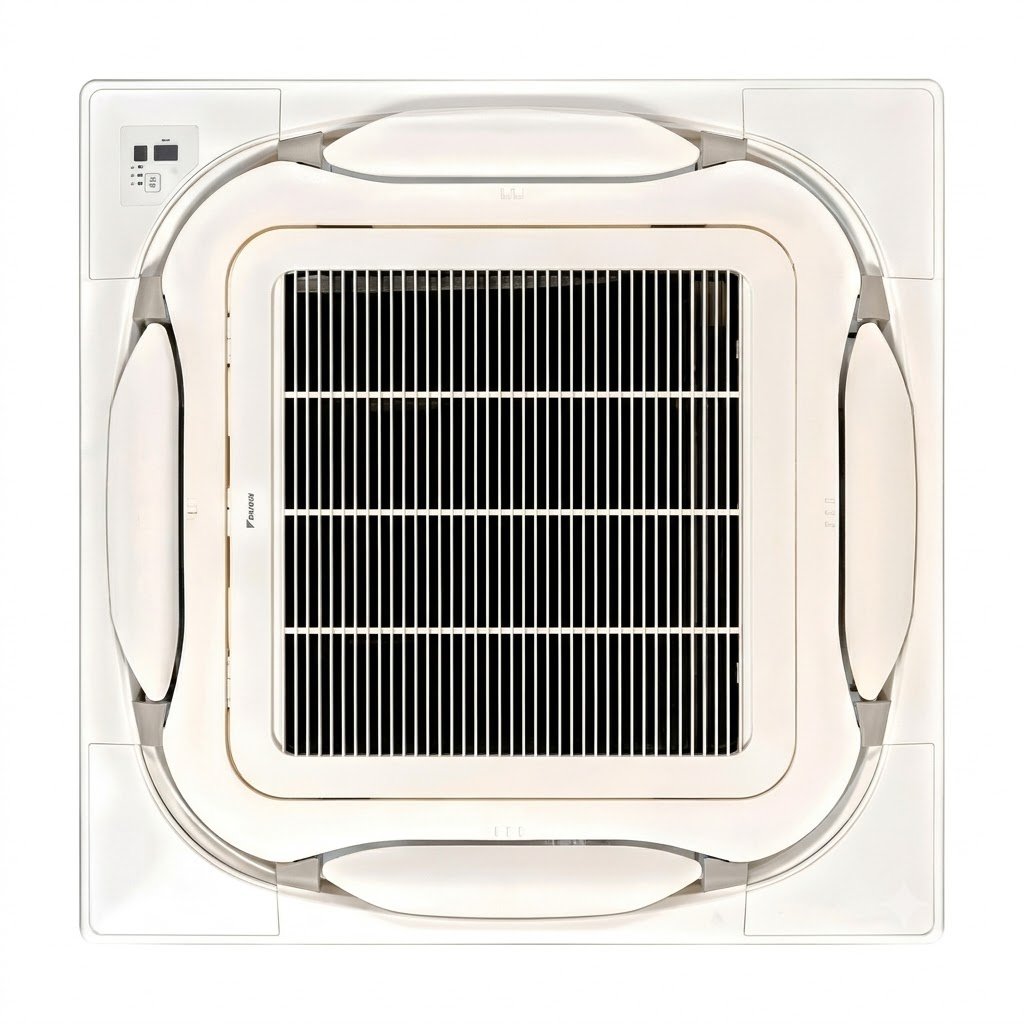

Daikin 3.8 Ton Cassette Ac- 2 Star non Inverter FCQF48ARV16
Daikin 3.8 Ton Cassette Ac FCQF AV16 Offers 360° surround cooling, eco-friendly R32 refrigerant, low noise Ultimate Ac for offices & showrooms!
GST Rate: 18%
Price (Excluding GST): ₹127,881.36
GST Amount (Included): ₹23,018.64
₹150,900.00 ₹165,200.00
Daikin 3.8 Ton Cassette Ac- 2 Star non Inverter FCQF48ARV16
- Cooling Capacity: 3.8 Ton (45,862 Btu/h / 10.50 kW) capacity, engineered for large commercial zones, offices, and showrooms up to 450 sq. ft.
- Energy Efficiency Rating: BEE 2-Star Non-Inverter model featuring a rated ISEER of 3.35 for fixed-speed systems.
- Power Consumption Parameters: Rated power input of 3,040 Watts with an annual electricity consumption metric of NAUnits/Year (based on 1,600 operating hours).
- Airflow Volume: Discharges a high-velocity 848 CFM airflow rate alongside 360° Surround Airflow distribution to prevent hot pockets.
- Acoustic Noise Levels: Quiet indoor operation profile maintaining a low operational noise threshold of 48 dBA.
- Physical Core Dimensions: Features a space-saving ceiling profile (Indoor Unit: 298 x 840 x 840 mm at 25 kg | Panel: 50x950x950 mm at 5 kg).
- Heavy-Duty Outdoor Unit: Paired with the RGVF36ASV16 outdoor condenser (990 x 940 x 320 mm at 74 kg) built to resist weather extremes.
- Refrigerant & Compressor Type: Operates on eco-friendly, zero-ODP R-32 Refrigerant driven by a heavy-duty Fixed-Speed Rotary Compressor.
- Installation Piping Limits: Supports a 30-metre maximum piping length and 15-metre vertical lift elevation using 3/8″ liquid and 5/8″ gas copper lines.
- High Ambient Cooling: Robust design threshold capable of maintaining continuous cooling performance across an outdoor temperature range of 19°C to 48°C DB.
- Built-in Condensate Pump: Factory-fitted with an integrated high-lift drain pump mechanism to lift waste water easily out of false ceilings.
| Weight | 105.5 kg |
|---|
| PRODOCT DETAILS | FCQF Series |
| Indoor Model No | FCQF48ARV16 |
| Outdoor Model No | RGVF48ASV16 |
| Power supply intake | Outdoor unit |
| Cooling Capacity Rated Full/Half (min ~ max) kW | 13.6 |
| Airflow Pattern | 360° Surround Airflow(4 Way) |
| Cooling Capacity Rated Full/Half (min ~ max) Btu/h | 45,862 |
| Power consumption (Cooling) Rated Full/Half (min~max) W | 4,200 |
| Annual Power Consumption kWh | NA |
| ISEER / ISEER Rank | 3.35 / Non Inverter 2 Star |
| Power Supply V, Hz | 1 , 230, 50 |
| Modes | Cool Mode, Fan Mode, Dry Mode |
| Timer | ON Timer can be set from 1 hour to 12 hours |
| OFF Timer can be set from 1 hour to 9 hours | |
| Auto Restart | Yes |
| Front Panel Colour | White |
| Indoor Dimensions (H x W x D) | 298 x 840 x 840 |
| Indoor Panel Dimensions (H x W x D) | 50 x 950 x 950 |
| Indoor Machine Weight (Kg) | 25 |
| Indoor Panel Weight (Kg) | 5.5 |
| Outdoor Unit Weight (Kg) | 74 |
| Airflow rate (H / HM / M / ML / L) m³/min (Cmm) | 36.5 / 33 / 29 / 25 / 21 |
| Airflow rate (H / HM / M / ML / L) m³/min (Cmm) | 1,289 / 1,165 / 1,024 / 883 / 742 |
| Sound Levels (H / MH / M / ML / L / SL) | 46 / 43 / 40 / 36 / 32.5 |
| Casing Colour | Ivory White |
| Compressor Type | Rotary |
| Refrigerant | R-32 |
| Dimensions (HxWxD) mm | 990 x 940 x 320 |
| Machine Weight (Kg) | 74 |
| ODU Sound Level dB(A) | 60 |
| Std. Interunit piping length (m) | 7.5 |
| Max. interunit piping length (m) | 30 |
| Max. installation level difference (m) | 15 |
| Piping Connection (Gas/Liquid) mm (inch) | ∅15.5/∅9.5 (5/8″ ; 3/8″) |
| Operating Ambient Temperature Range Cooling (Min ~ Max) °CDB | 19° ~ 48° |
